Automatic High Speed Folder Gluer Carton Machine

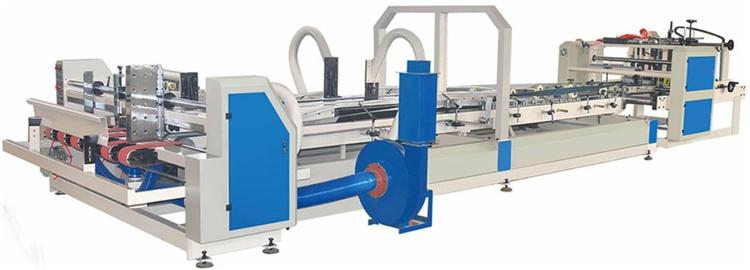

QZD-2800 Automatic Fold Gluer

Introduction:

QZD Automatic folder guler is consist of three parts which are feeding paper part, glue folding part and counting stacking part. Speed adjust by digital, range adjust by PLC, double frequency convertor synchronous operation, with quick reliable and precise control mode. Automatic feeding paper, automatic gluing and folding, automatic counting and stacking with output. Gluing speed can reach to 150m/min, energy-saving, labor saving.

Function of each unit:

1. Feeding part
   1. Adopt adsorption type belt lead edge paper feeding method, accurately and stable.
   2. Adopt high-grade electromagnetic clutch and electromagnetic brake system. Paper feeding unit can be controlled individually. Easy operation.
   3. Creasing wheel is adjustable for the thickness 2-8mm of cardboard.
   4. Frequency control of motor speed with the glue folding unit, has a speed of 0-130m/min.
   5. Front baffle and the belts of the feeding unit can bu adjusted right and left, quick adjustment of various size and length of the cardboard box.

2. Glue folding part
   1. Main motor adopt frequency control of motor, no noise, convenient and stable.
   2. Imported circular seamless docking convey belt made of high wear resistant materials, folding of cardboard accurately and automaticly.
   3. Gluing unit selects high quality stainless steel gluing wheels, coating evently, trouble free and glue saving.
   4. Folding unit equipped with paper corrective and creasing corrective device.
   5. Folding speed 0-130m/min.
   6. Folding unit equipped with two rows fixed position wheel, precision shaping.
   7. The right and left baffles are adjusted electrically.

3. Counting and stacking part
   1. With PLC programmable controller and touch screen digital control, easy operation, input date without downtime, auto counting, stacking and output.
   2. Counting unit adopt frequency control, speed can be adjusted.
   3. With imported circular seamless docking convey belt, stacking trimly, has a speed of 0-130m/min.
   4. Counting and output pneumatically, with PLC, accuracy and fast.
   5. Output unit adopt upper and lower belt compressing tightly, make the carton gluing firmly and output trimly.
